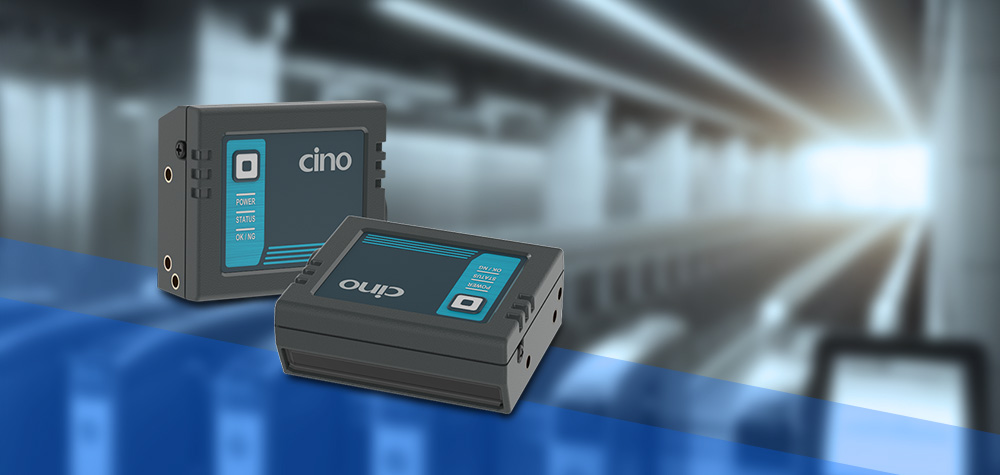

Powered by Cino's exclusive imaging technology, the FM590 linear fixed-mount scanner reads a wide range of challenging barcodes at speeds of up to 800 scans per second. The scanner features a purpose-built optical system that provides a wide scanning field at short range. Featuring a durable construction with IP64 protection and a wide operating temperature range of -20°C to 50°C, the FM590 delivers high reliability even in harsh environments. With multiple mounting holes, the scanner can be seamlessly integrated into diverse applications. Built for ultra-fast reading performance, a wide scanning field, and long-lasting durability, the FM590 provides an ideal solution for pharmaceutical, healthcare, laboratory, and factory automation applications.
PRESS RELEASE
Fixed-Mount Scanner
Exceptional Scanning Capabilities
The FM590 supports not only most 1D barcodes, but also stacked, composite, PDF417, and GS1 barcodes such as GS1-128 and GS1 DataBar. Compliant with both GS1 and UDI standards, it is capable of parsing GS1 Application Identifier (AI) and UDI Device Identifier (DI) data. These capabilities make the FM590 well-suited for applications that require accurate product traceability and data verification.
A Wide Scanning Field at Short Range
Equipped with a purpose-built optical system, it reliably captures barcodes at long distances and reads 3-inch-wide barcodes from as close as 1.2 inches. This makes it the ideal scanning solution for space-constrained IVD and laboratory applications.
Seamless Integration
Compatible with a wide range of popular scanners in dimensions and mounting design, the FM590 provides an ideal drop-in replacement. In addition to a standard front-view scan window option, a side-view alternative is also available, specifically optimized for space-constrained installations. For different system requirements, the scanner offers multiple interface options, including USB, RS232, and Universal.
Exceptional Value
FuzzyScan DNA is a collection of value-added features available for every Cino imager at no extra cost. These exclusive capabilities enhance the overall user experience and help address various technical challenges that extend beyond barcode scanning.
